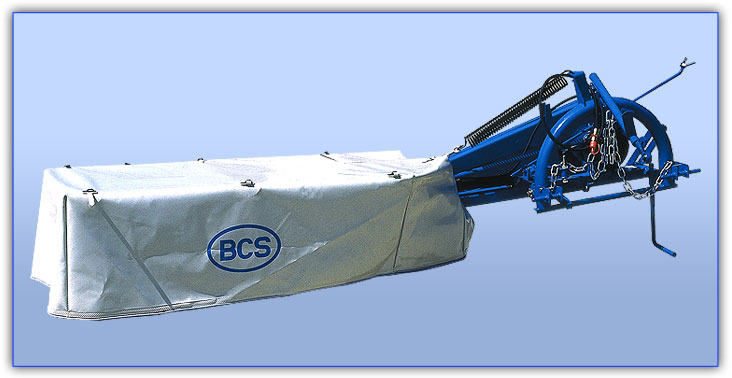

BCS 404 TRACTOR MOUNTED DISC MOWER
|
| |
|
| BCS 404 SPECIAL FEATURES : |
| Excellent Combination Of technology And Tradional |
| |
- Tractor PTO OPerated :- Easily operated by tractor PTO (35 hp or above)
- Sharp Cutting :- With 4 DIscs with small Helical Cutting Bades.
- Two Cones Conveyers :- Works to make pathway for cutting fodder crops.
- H ydraulic Lifting :- To lift the cutting bar during transportation & turning in field.
- Beam Balancing Springs :- To balance the machine during the cutting operation.
- Special wear - proof slides :- To protect the housing of cutting bar and discs at the time of operations.
|
| |
| FEATURES BCS 404 |
| Types of Crops |
Any Fodder Crops& Paddy Stubbles |
| Number of Discs |
4 |
| Cutting Width Cm. |
170 |
| Transmission With Gears |
 |
| Wear-resistant Steel Skides |
|
| Hydraulic Lift of The Cutter Bar |
|
| Moving Angle |
High 35 deg. Low 35 deg. |
| PTO Power (hp) |
35 |
| Weight Kg. |
300 |
| |
|
|
| |
|
|
| |
|
